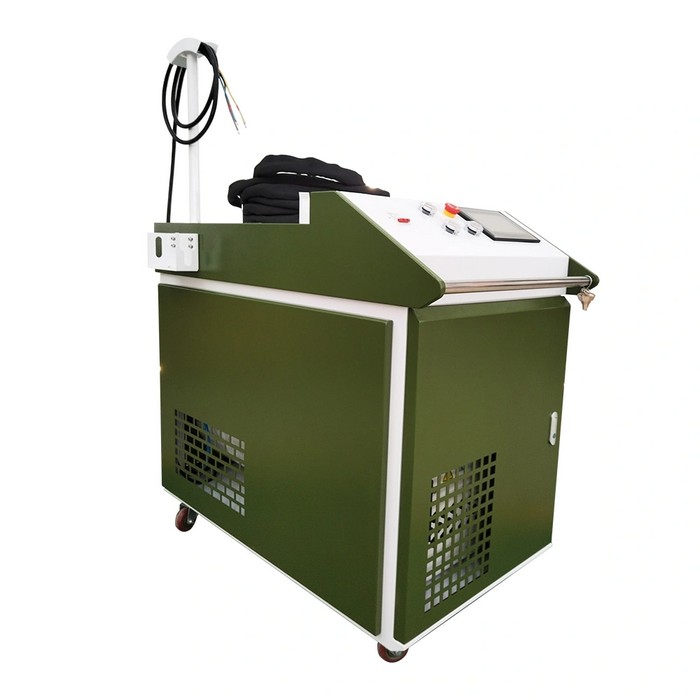

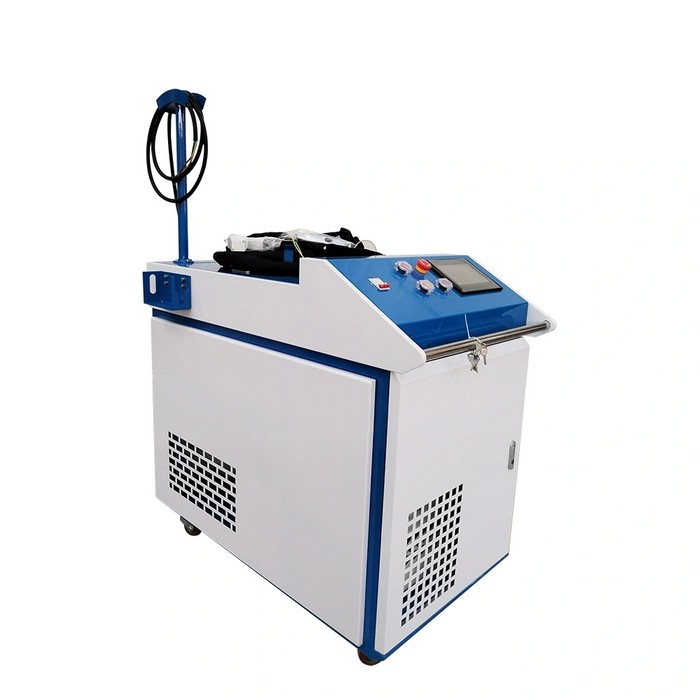

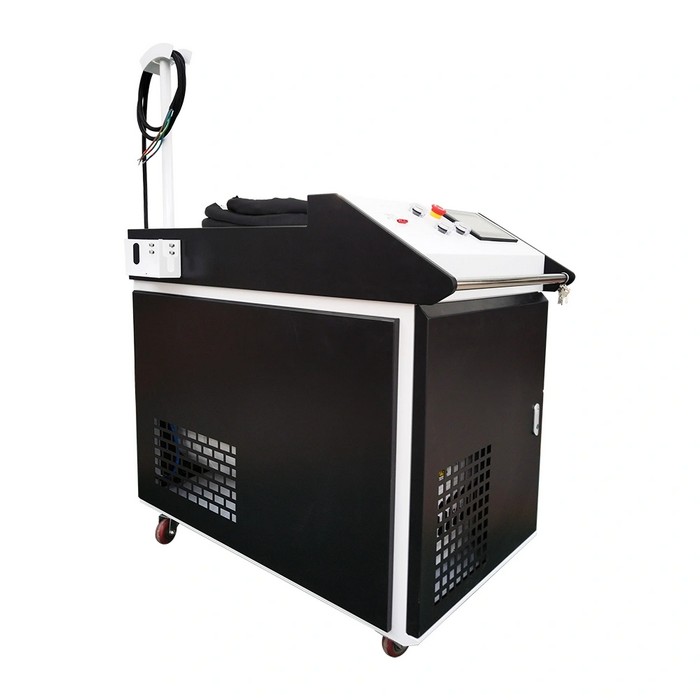

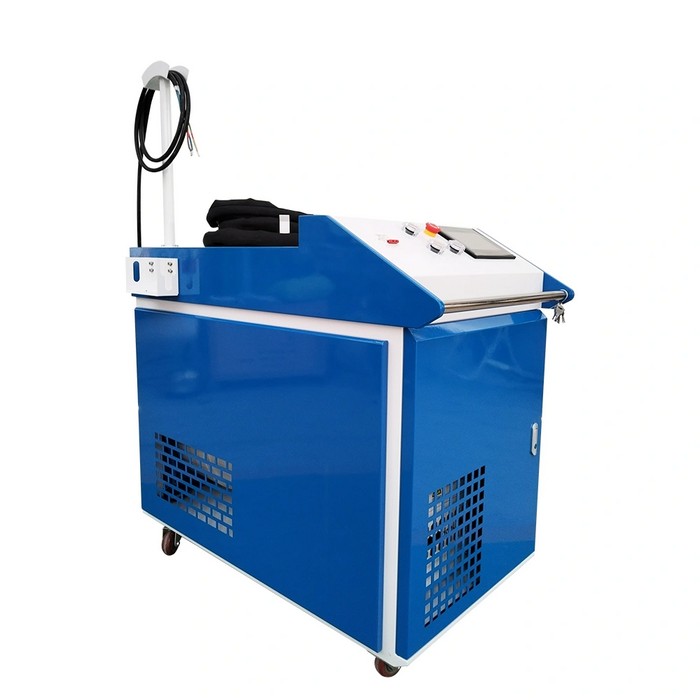

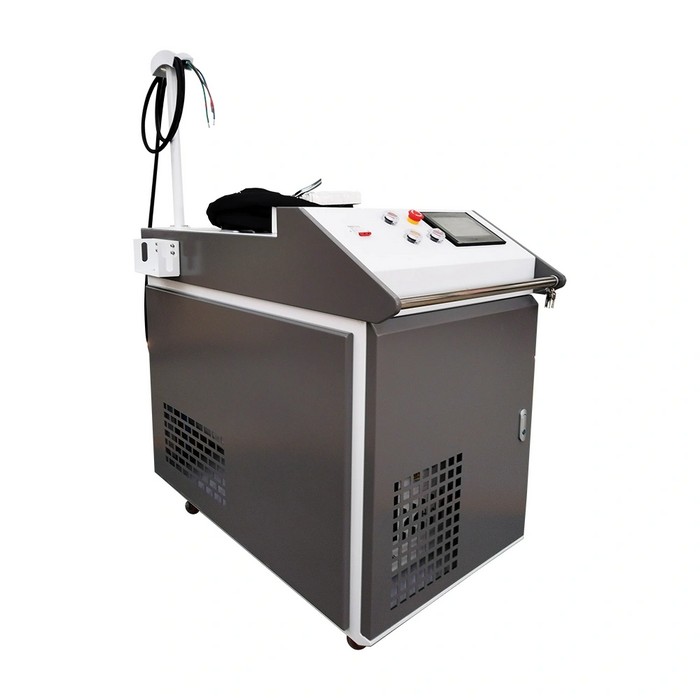

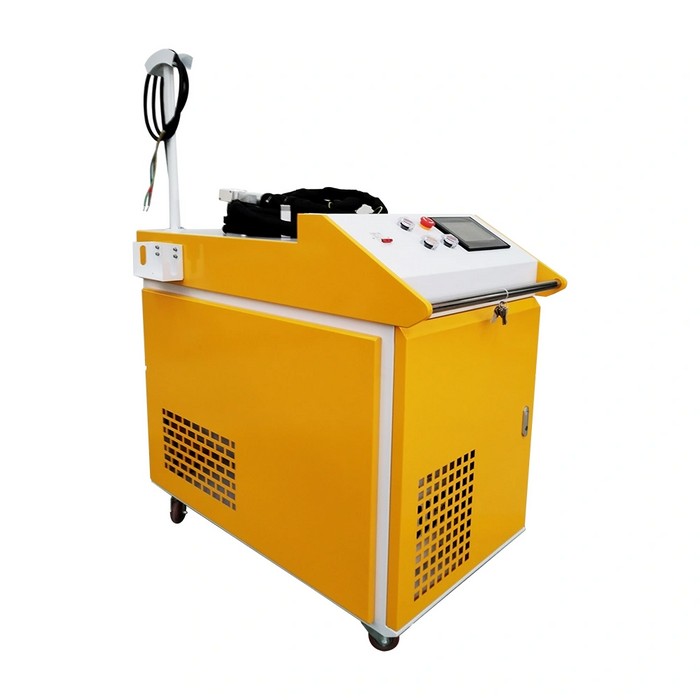

MK-HW Series Handheld Laser Welding Machines

MK-HW series hand-held laser welding machines is a new generation of laser welding products, with integrated design and stable performance, easy installation and simple operation, designed with high safety standards.
3-in-1 functions in one machine, handheld laser cleaning, handheld laser cutting and handheld laser welding. It has the characteristics of fast welding speed, high efficiency, good welding effect, less welding consumables, long service life and environmental friendly. It can be widely used in kitchen appliances, door and window guardrails, stair lifts, stainless steel furniture, metal sheet metal, billboards, craft gifts, welding in auto repair, automobile manufacturing, rail transportation and aerospace industries.
The laser welding is using high power laser to melt surface material and make them weld together. It is non-contact welding, no outer force which will cause stress and deformation. Welding time is in millisecond, heating effect area is only within beam focusing area, with high processing efficiency and suitable for mass production.

FEATURES & ADVANTAGES

The new multifunctional 4 in1 laser welding machine integrates welding, cleaning, cutting, and soldering seam cleaning.

Fast welding speed, 2~5 times faster than traditional welding.
Easy operating, fast training
Smooth and clean welding steam, does not required polishing
No deformation or welding scar, firm welding of the workpiece.
Laser welding has less consumables and long service life.
Safer, more environmentally friendly, compare to traditional welding process.
Included water chiller and wire feeder

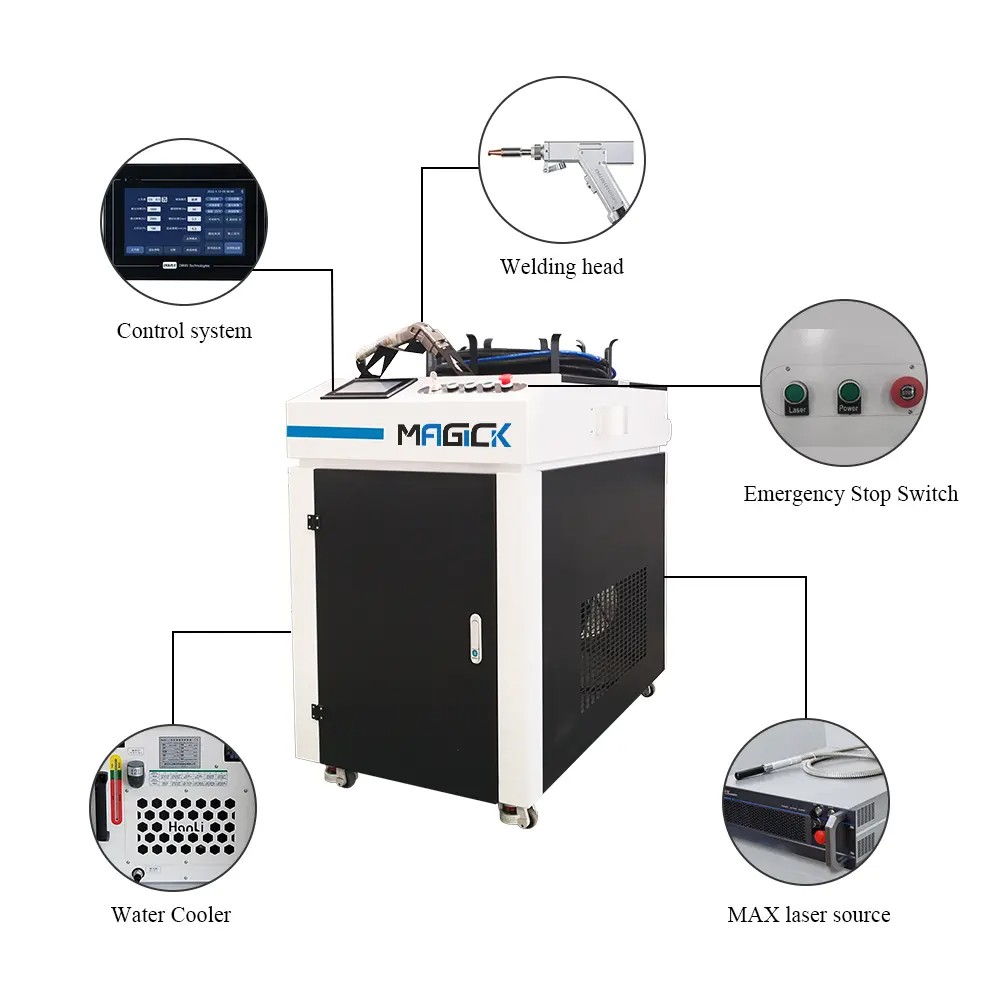

Basic Machine Parameters

Laser power 1500/2000/3000w
Laser source MAX
Modulation frequency 1-20,000HZ
Laser wavelength 1,064±10nm
Welding head Gefasst
Water chiller S&A
Power required 220V 50Hz (1.5/2kw)
Power Consumption 7.5kw
Fiber optical length 10 meters
Auxiliary gas N2/Argon
Cooling Water Cooling
Warranty 2 years
Machine size (L*W*H) 1430*740*1230mm
Gross Weight 220-260kg
Price (USD) From $8000

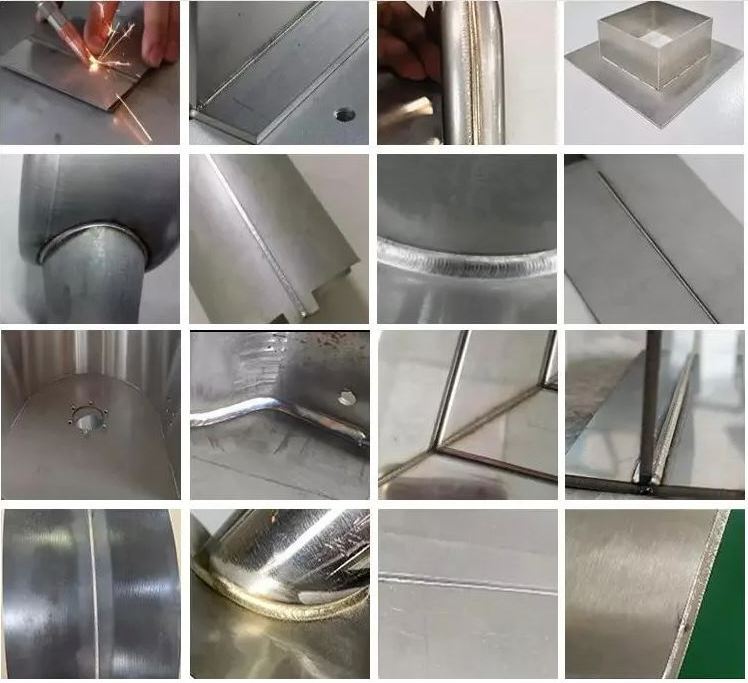

Welding Capability

Material 1000w 1500w 2000w 3000w
Stainless Steel ≤4mm ≤5mm ≤6mm ≤7mm
Mild steel/Iron ≤4mm ≤5mm ≤6mm ≤7mm
Galvanized sheet ≤1.5mm ≤2mm ≤4mm ≤5mm
Aluminum ≤2mm ≤3mm ≤3mm ≤5mm

Gefasst Welding Wobble Head

Simple operation
Capable of welding stainless steel plates, iron plates, aluminum plates and other metal materials
Can perfectly replace the traditional argon arc welding and electric welding technology.

Laser Source

Single module MAX Fiber Laser Source with 1500/2000/3000watts laser power

Wire Feeder

Touch screen display, four-wheel double-drive wire feeding mechanism. Adjustable wire feeding speed 25-600cm/min.
Supports continues and pulse wire feeding mode.
